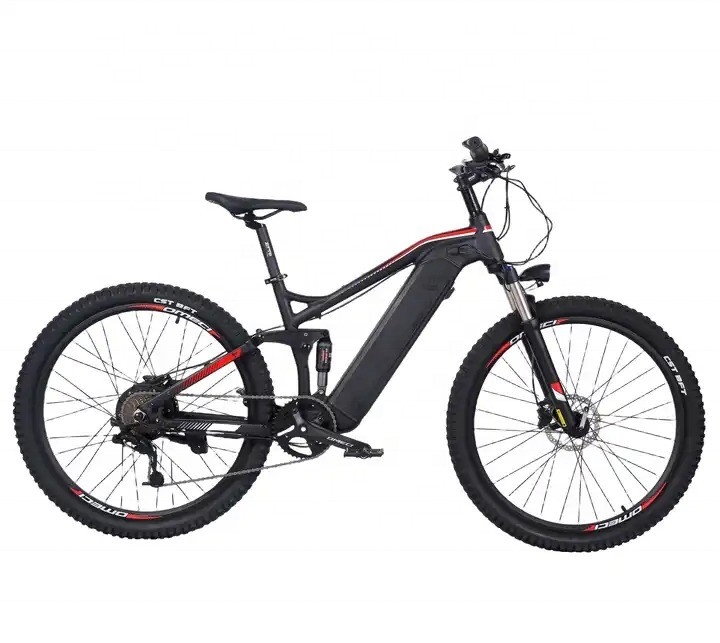

Full Suspension Adults Electric Hybrid Bike 27.5 Inch Double Hydraulic Disk Brakes
|
Full Suspension Adults Electric Hybrid Bike 27.5 Inch Double Hydraulic Disk Brakes
| Place of Origin | Zhejiang, China |
| Brand Name | OEM |
| Model Number | TH-H020 |
| Document | Product Brochure PDF |
Product Details
Gears:
9 SPEED
Range Per Power:
> 60 Km
Frame Material:
Aluminum Alloy
Wheel Size:
27.5"
Max Speed:
30-50Km/h
Voltage:
48V
Power Supply:
Lithium Battery
Braking System:
Double Hydraulic Disk Brake
Torque:
80-90 Nm
Charging Time:
>3 Hours
Motor Position:
Rear Hub Motor
Battery Position:
Integrated Battery
Battery Capacity:
48V 15 AH
Product Name:
Electric Hybrid Bike
Battery:
48V 15AH Lithium Battery
Brake:
Double Hydraulic Disk Brakes
Color:
Green,white,black,red,blue
Display:
LCD Display
Motor Power:
48V 500W(1000W Max)
Tire:
27.5*2.4"(2.8/3.0 Optional)
Frame:
Aluminum Alloy
Derailleur:
Shimano 9-speed-gears
Warranty:
2 Years
Highlight:
Full Suspension Electric Hybrid Bike
,Adults Electric Hybrid Bike
,Full Suspension Electric Bike 27.5 Inch
Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$799.00/pieces 2-99 pieces
Packaging Details
(1.) Packing: 1 Piece/1 Carton
(2.) Packing size: 1530x280x750mm
(3.) N.W./G.W.: 28/36KGS
(4.) Inner bubble bag wrap+foam,Outer 7 layers corrugated cartons
(2.) Packing size: 1530x280x750mm
(3.) N.W./G.W.: 28/36KGS
(4.) Inner bubble bag wrap+foam,Outer 7 layers corrugated cartons
Product Description
Product Description
|
Frame
|
Aluminum alloy
|
Motor
|
48V 500W Brushless hub motor
|
|
Battery
|
48V 15Ah lithium battery
|
Max speed
|
40km/h(can be adjust as request)
|
|
Charger
|
48V 2A smart charger
|
Charging time
|
4-6 hours
|
|
Range per charge
|
70-80km
|
Gears
|
9 speed gears
|
|
Front fork
|
Al alloy with suspension
|
Brakes
|
Front and rear hydraulic disk brakes
|
|
Tires
|
27.5"x2.40 tires
|
Display
|
Digital LCD display
|
|
Lights
|
LED headlight and taillight
|
Saddle
|
Sport and soft saddle
|
|
Weight
|
27kgs
|
Loading capacity
|
135kgs
|
|
Riding mode
|
Throttle/Pedal assist or both
|
Package
|
7 layers strong corrugated carton
|
|
Certification
|
CE,EN15194,RoHS
|
Warranty
|
2 years
|
