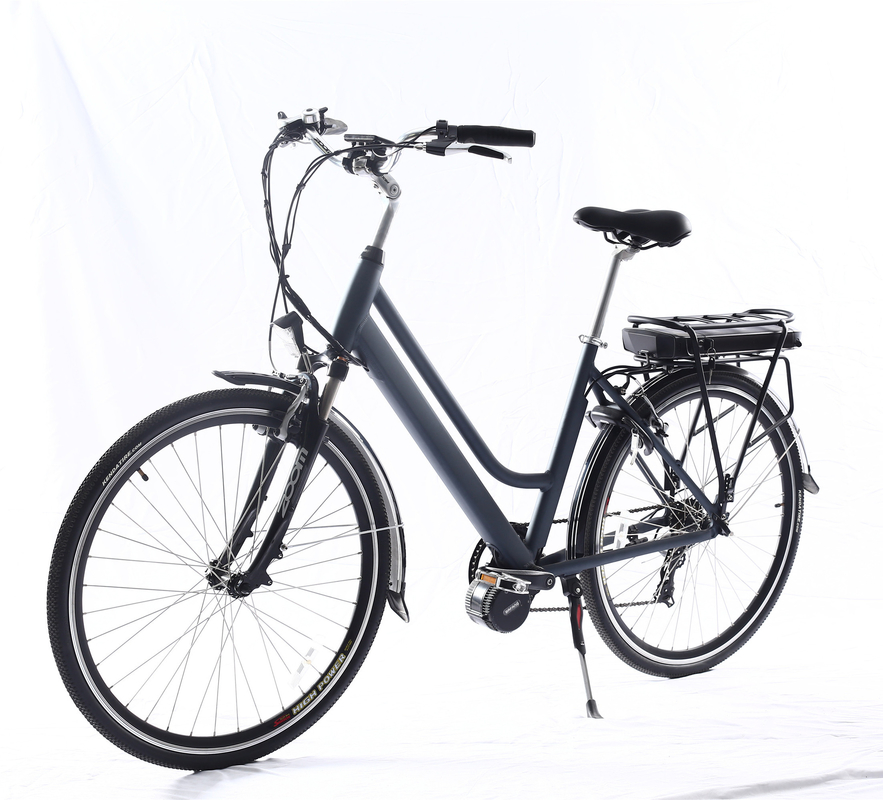

28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position
  • 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position
  • 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position
  • 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position
  • 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position
  • 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position
  • 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position

28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position

Place of Origin Zhejiang, China
Brand Name OEM
Model Number TH-YT01 fashion e-bike
Document Product Brochure PDF
Product Details
Gears:
Shimano 7 Speed
Range Per Power:
31 - 60 Km
Frame Material:
Aluminum Alloy
Wheel Size:
28", 28 Inch
Max Speed:
25-45KM/hour Optional
Voltage:
36V
Power Supply:
Lithium Battery
Braking System:
Double V Brake
Torque:
80-90 Nm
Charging Time:
>3 Hours
Motor Position:
Central Motor
Battery Position:
Rear Carrier
Battery Capacity:
36V 10Ah
Smart Type:
Sensor, Electronic, Digital
Product Name:
Fashion E-bike
Battery:
36V 10AH Lithium Battery
Brake:
Front, Rear V Brake
Color:
Black,white,red,blue, Optional
Display:
LCD
Motor Power:
250W 8fun Mid Drive
Tire:
28"X1.95
Derailleur:
Shimano 7-speed-gears
Tyre:
Kenda Brand
Port:
Shanghai Or Ning Bo
Highlight:

28 Inch Mid Drive Electric Bicycles

,

LCD Display Mid Drive Electric Bicycles

Payment & Shipping Terms
Minimum Order Quantity
50 pieces
Price
$699.00/pieces 50-99 pieces
Packaging Details
Export standard packing
(Carton/Carton board/Foam/Foam bag)
Supply Ability
5000 Piece/Pieces per Month
Product Description

28 Inch Fashion E-bike THP-YT01 with LCD Display and Rear Carrier Battery Position

Product Description



  PRODUCT DESCRIPTION

  Huzhou Thunder Electric Bike Co., Ltd



 Frame   Aluminium alloy  Tyre size  28"*1.95 tires
 Motor   36V 250W mid drive  Max speed  25km/h(can be adjustable)
 Battery  36V 10.4Ah Li-ion battery  Range per charge  30-40km depend on loading and terrain
 Brakes  Front/rear V brakes  Charger  36V 2Amp smart charger
 Derailleurs  Shimano 7-speed-gears  Charging time  4-6 hours
 Front fork   Alloy front fork with suspension  Display  Digital LCD screen display
 Lights   LED lights  Seat  Plush big comfortable and soft saddle
 Riding mode  Throttle/Pedal assist or both  Package  7 layers strong corrugated cartons
 Weight  25kgs  Loading capacity  150kgs
Certifications  CE, RoHS,EN15194  Warranty  2 years



More Details


1.Max loading: 130-150KGS

2.Max speed :25/32/40km/h which can be adjustable

3.N.W./G.W.:25KGS/30KGS

4.Qty/container: 90pcs/20ft,210pcs/40HQ







Product Pictures



  PRODUCT PICTURES

  Huzhou Thunder Electric Bike Co., Ltd



 28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 028 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 128 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 228 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 328 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 428 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 528 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 628 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 728 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 8

Product Categories



  PRODUCT CATEGORIES

  Huzhou Thunder Electric Bike Co., Ltd

28 Inch Mid Drive Electric Bicycles With LCD Display Rear Carrier Battery Position 9





FAQ



  FAQ

  Huzhou Thunder Electric Bike Co., Ltd



1. Q: Can I get samples?
A: Yes,sample order is always available for quality check and test.



2. Q: What's the lead time?What is your terms of delivery?
A: For some ebikes,we have in stock ready to ship,lead time can be 1-3 day;And for mass production,it usually takes about 15-30 days based on different quantity;Delivery term available for EXW, FOB, CIF, DDU,DDP.



3. Q: What's your payment terms?
A: Payment can be by PayPal,Credit Card,Bank Transfer or L/C,and other secure payment can also be acceptable.



4. Q: What's your warranty terms?
A: We offer 1-2 years for different products,please contact us for details.



5. Q: Do you have the products in stock?
A: Yes,we have some ebikes in stock which can be shipped out immediately.



6. Q: Can I mix different models in one container?
A: Yes, different models can be mixed up in one full container.



7. Q: How does your factory guarantee on-time shipment and quality control?
A: We offer Trade Assurance Service where buyer will have 100% payment protection against on time shipment and product quality.



8. Q: What can you do regarding long-term cooperation?
A: 1. We could keep stable and consistent quality and reasonable price to ensure our customers benefit ;
2. We respect every customer and we sincerely do business and make good friends with them, no matter where they come from.
